GPRS/GPS (SIM900) Tracker with Atmega328p (Arduino UNO-compatible firmware)

Comments

Source

Source files

Schematic and PCB design files, GitHub

Description

A self-contained and autonomous GPRS/GPS Tracker using SIM900 and Atmega328p for Arduino UNO-compatible firmware. Proof of concept prototype that integrates sensors, power management features and communication interfaces.

Characteristics:

  • Atmega328p microcontroller for Arduino UNO-compatible firmware.
  • Connectors for SIM900 shield for
  • FTDI232 module for USB communication and firmware uploading.
  • AC/DC converter for 110/220 V input.
  • Li-on 7.2B battery charger for mobile and backup support.
  • LM35 temperature sensor.
  • AC sensor.
  • Proximity sensor via optocoupler.
  • The schematic and PCB design are made in Proteus.

Schematic

It appears you don't have a PDF plugin for this browser or JavaScript is disabled. You can download the PDF.

PCB

It appears you don't have a PDF plugin for this browser or JavaScript is disabled. You can download the PDF.

3D view

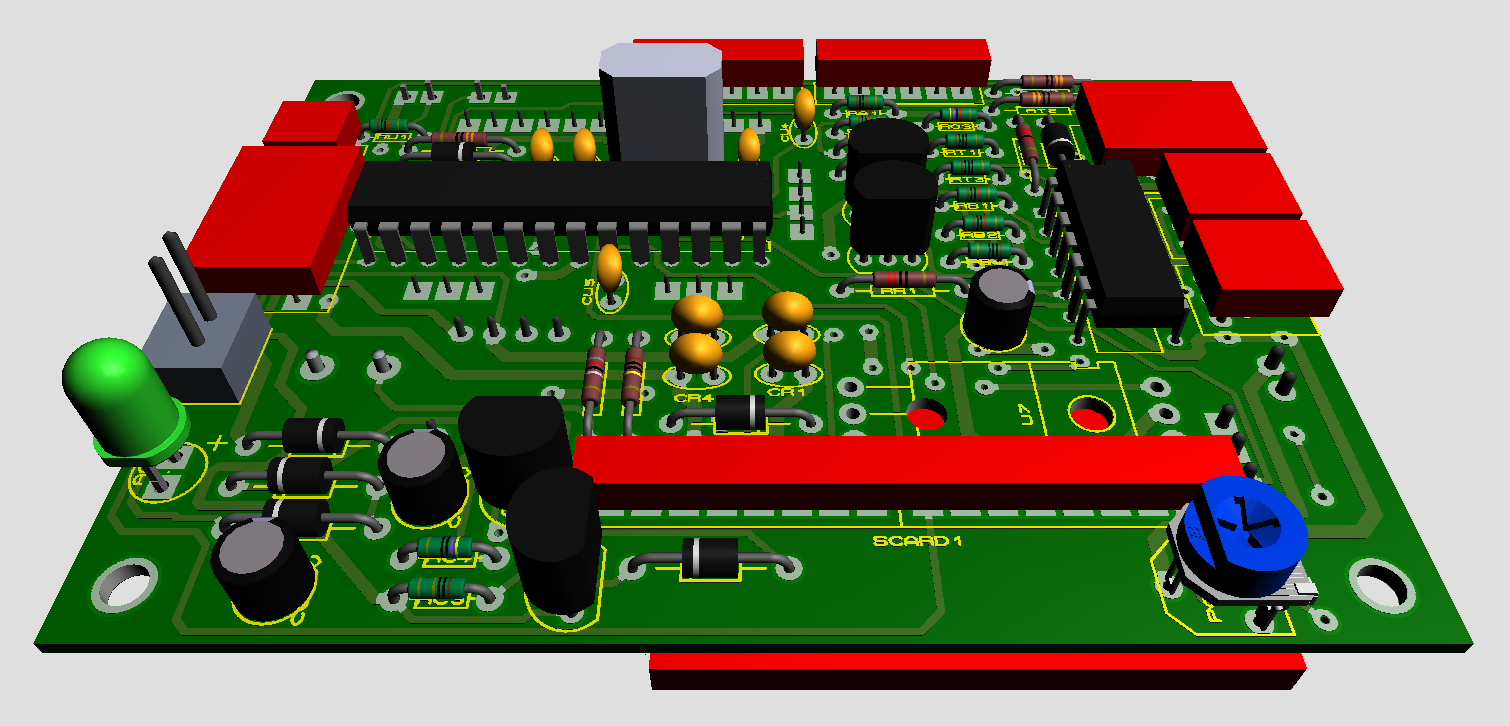

3Dview1
Top view

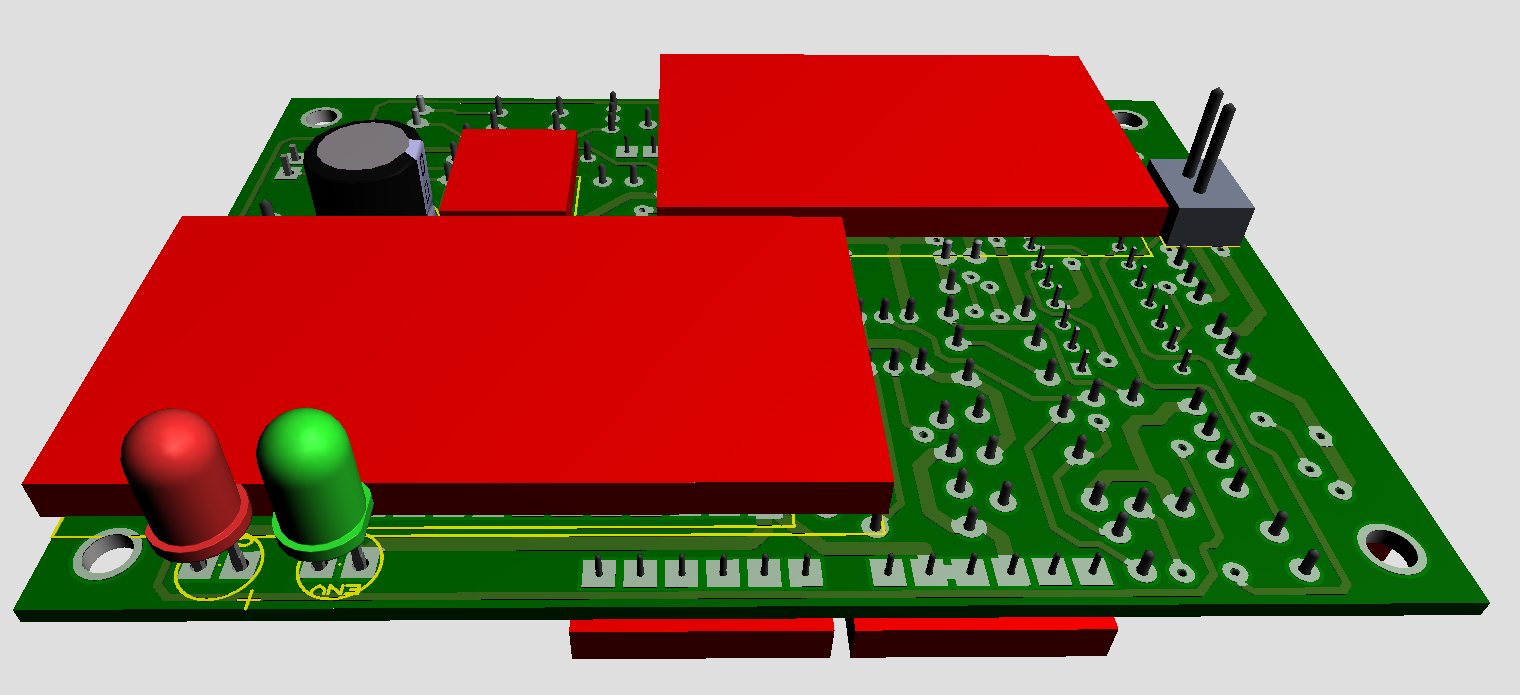

3Dview2
Bottom view

Bill of materials (BOM)

It appears you don't have a PDF plugin for this browser or JavaScript is disabled. You can download the PDF.
